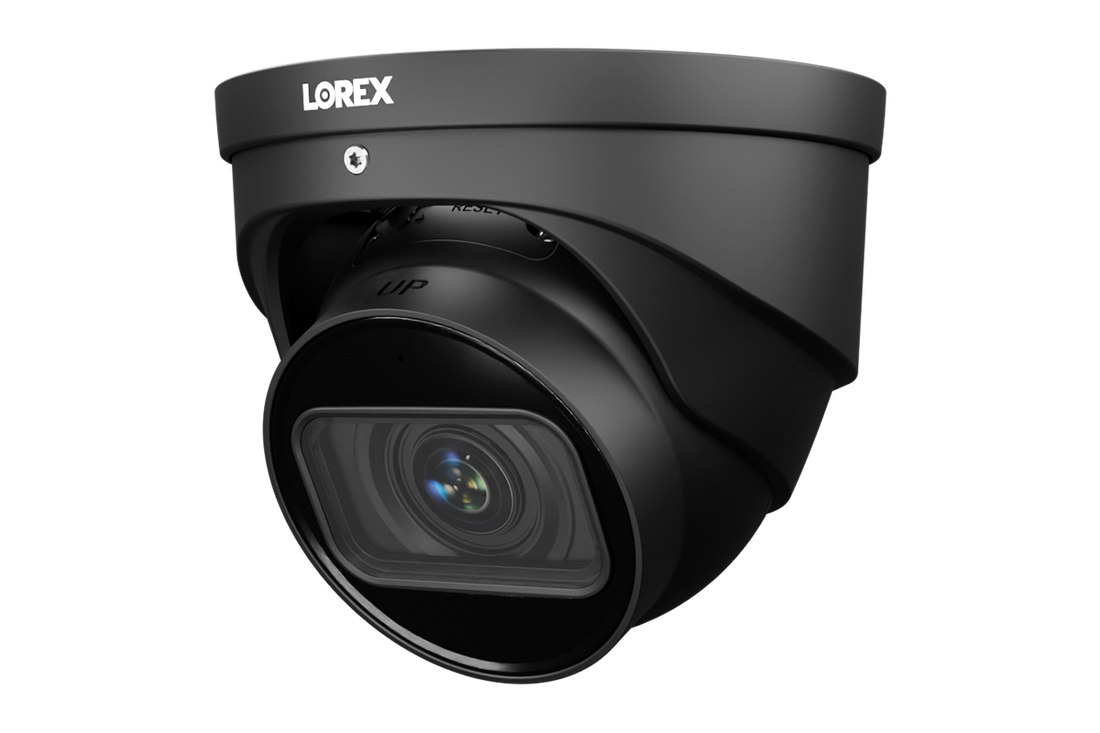

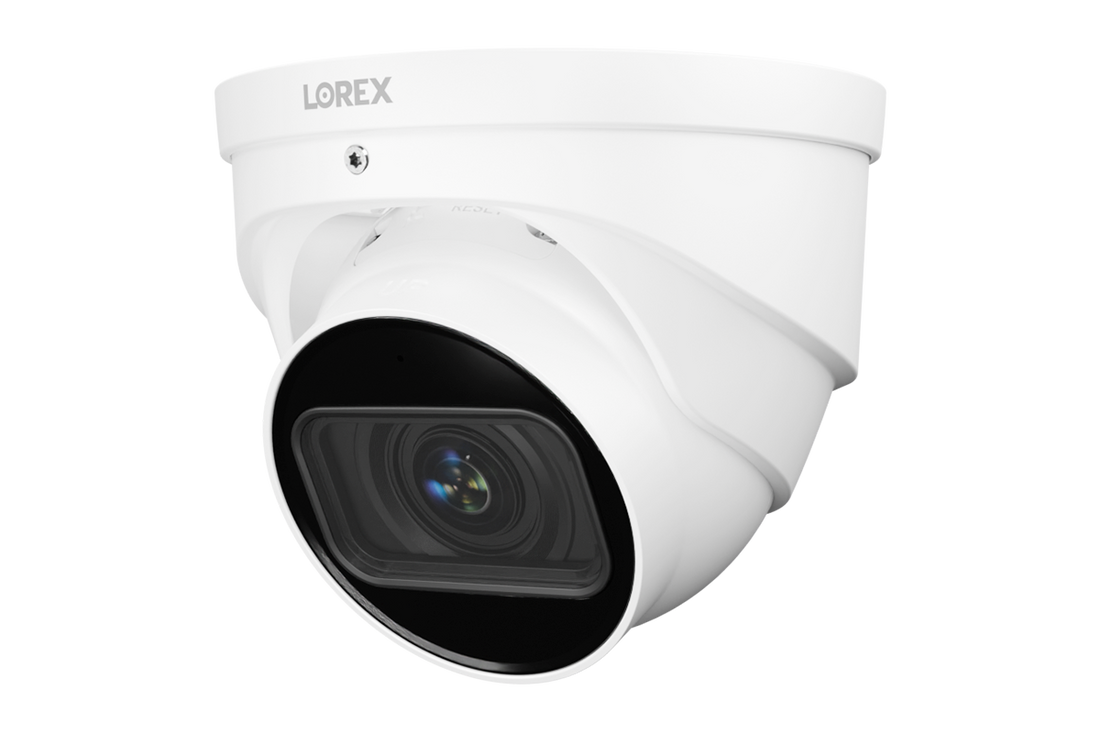

Nocturnal Series N4 Lite 4K IP Wired Turret Security Camera with Motorized Varifocal Lens, Real-Time 30FPS Recording (Cable not included)

General
Video Transmission Technology	IP
Image Sensor	4K (8MP) C
Video Format	NTSC
Video Compression	H.265/H264 (Main Stream & Sub Stream)
Video Streams	4

Optical
Viewing Angle (diaognal)	133° - 53°
Lens/Lens type	F1.8/Motorized Varifocal
Focal Length	2.7mm - 12.0mm
Optical Zoom	4× Optical Zoom

Video Output
Resolution/Frame rate	8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728); 5M (2592 × 1944); 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048 × 1536); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Frame Rate (Maximum)	Main stream: 3840 × 2160@ (1–25/30 fps) Sub stream: D1@(1–25/30 fps) Third stream: 1080p@(1–25/30 fps) Fourth stream: 720p@(1–10 fps)
WDR	Yes
Termination	RJ45
Aspect Ratio	16:9

Audio
Microphone	Yes
Siren	No
Two-way Talk	No
Input/Output	Built in Mic, Line Audio-in & Line Audio-out

Night Vision
Night Vision Range	40 m (131.23 ft)
Color Night Vision	Yes

Special Features
Smart Motion Detection	Yes
Detection Types	Vehicle and Person
Other Features	Heat Mapping, People Counting

Additional Specifications
Camera Housing Material	Alluminum Alloy
SD Card Slot	Yes*
Power Requirements	ePoE (Power over Ethernet Class -802.3af)/12V DC
Power Consumption (max)	7.5 W (12 VDC); 9.0 W (PoE)
Camera Dimensions (D x H)	4.3 × 4.8” 108 x 122mm
Camera Weight	0.70 kg (1.54 lb)
Operating Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Humidity	≤95%
Environmental Rating	IP67
Certification	FCC

What's Included?

1. 12V DC Power Connector
2. Ethernet Connector
3. Cable Notch
4. Adjustment Screw
5. Microphone
6. Camera Lens
7. IR Lights (2×)
8. Camera Base
9. Camera Cover
10. Turret Camera
11. MicroSD Card Slot
12. Reset Button



Package Contents:

4K IP PoE Wired Turret Camera

Mounting Kit

T15 Torx Key

Weather-resistant Cap
