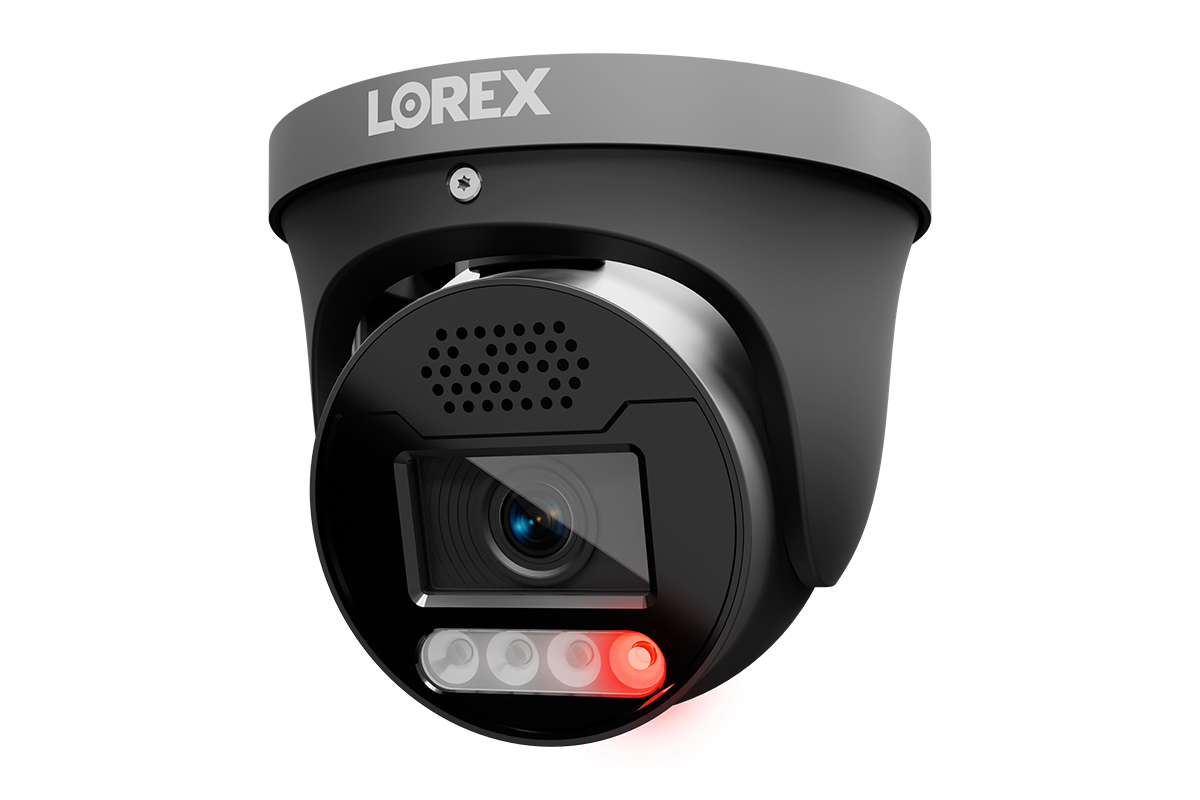

Lorex Connect X5 4K PoE Turret Camera with AI Color Night Vision - White/Black (Cable not included)
Camera
Image Sensor 8MP 1/1.8” CMOS

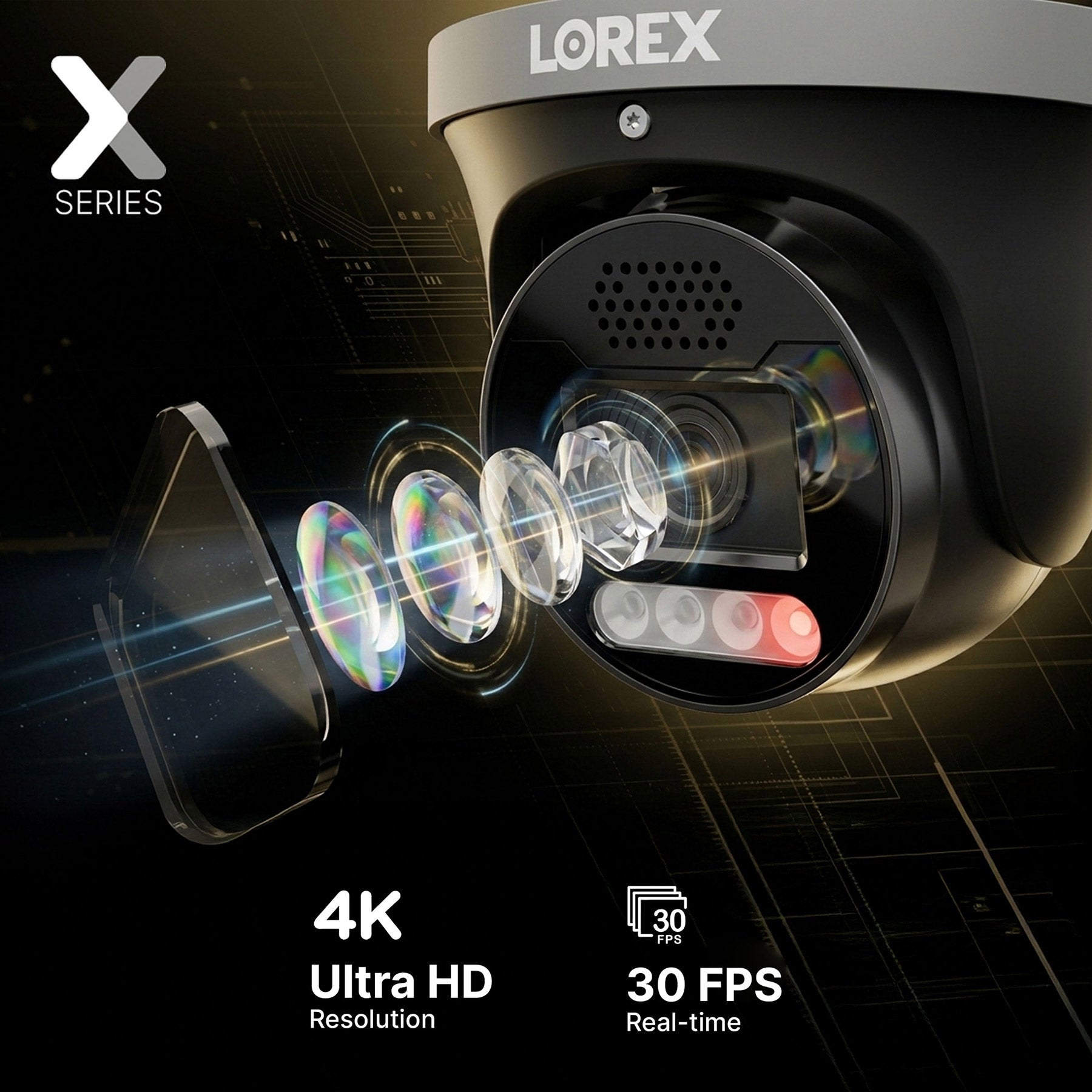

Max Resolution 4K (3840 × 2160)
Max Frame Rate 30 fps
Aspect Ratio 16:9
Wide Dynamic Range 120 dB True WDR
Min Illumination Color: 0.0005 lux/ B/W (IR On): 0 lux
Signal-to-Noise Ratio 55 dB
Lens
Type Fixed
Focal Length / Aperture 2.8 mm / F1.0
Field of View Diagonal: 113.5° / Horizontal: 109.4° /
Vertical: 59.5°
Video
Compression Nano Codec (Enhanced H.265
Compression), H.265, H.264, MJPEG
Video Streams Main / Sub / Third Stream
Bit Rate Control CBR / VBR
Video Format NTSC
Audio
Microphone Yes
Speaker Yes
Two-Way Talk Yes
Night Vision
IR Night Vision Yes (Up to 98 ft / 30 m in total
darkness)

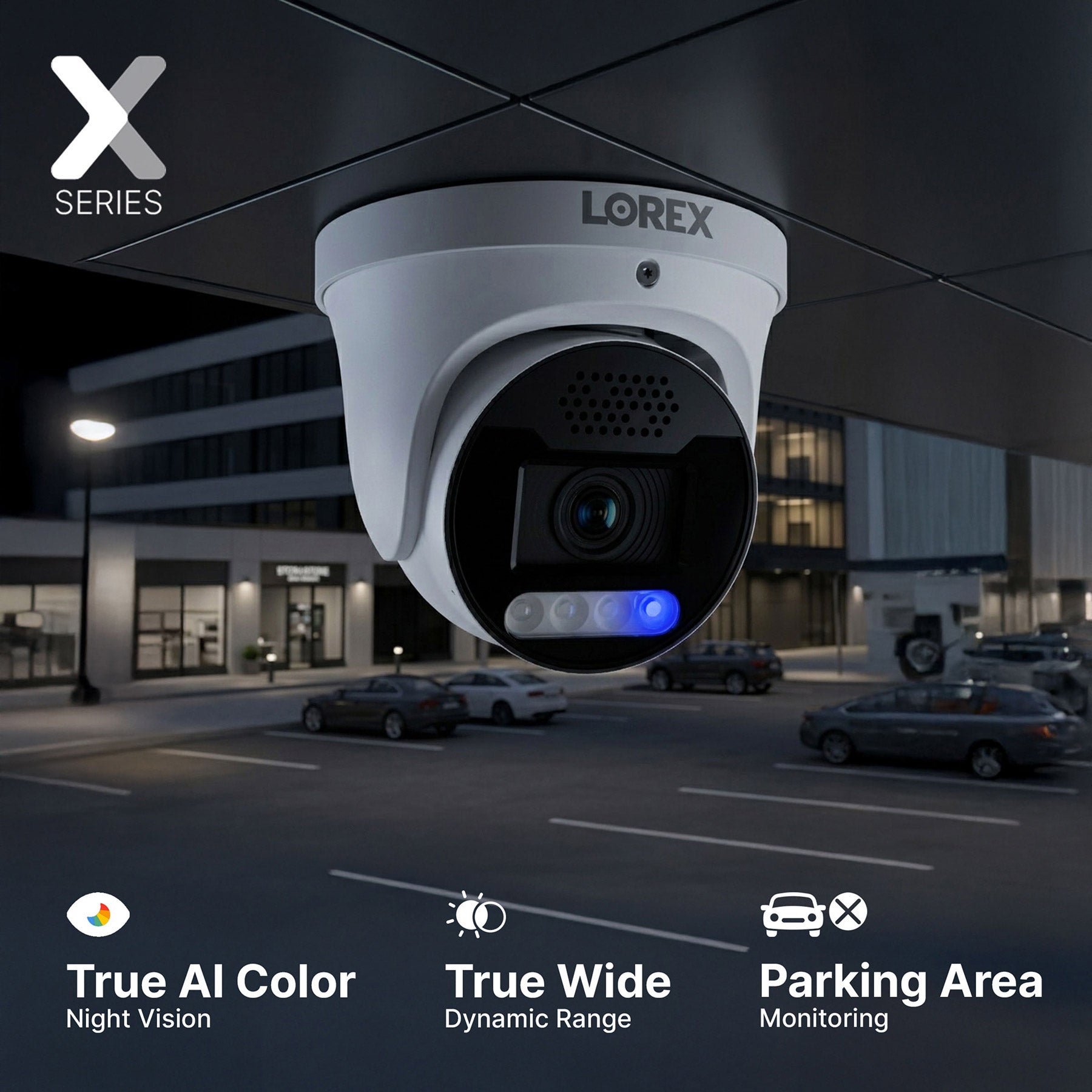

AI Color Night Vision Yes
AI Smart Features

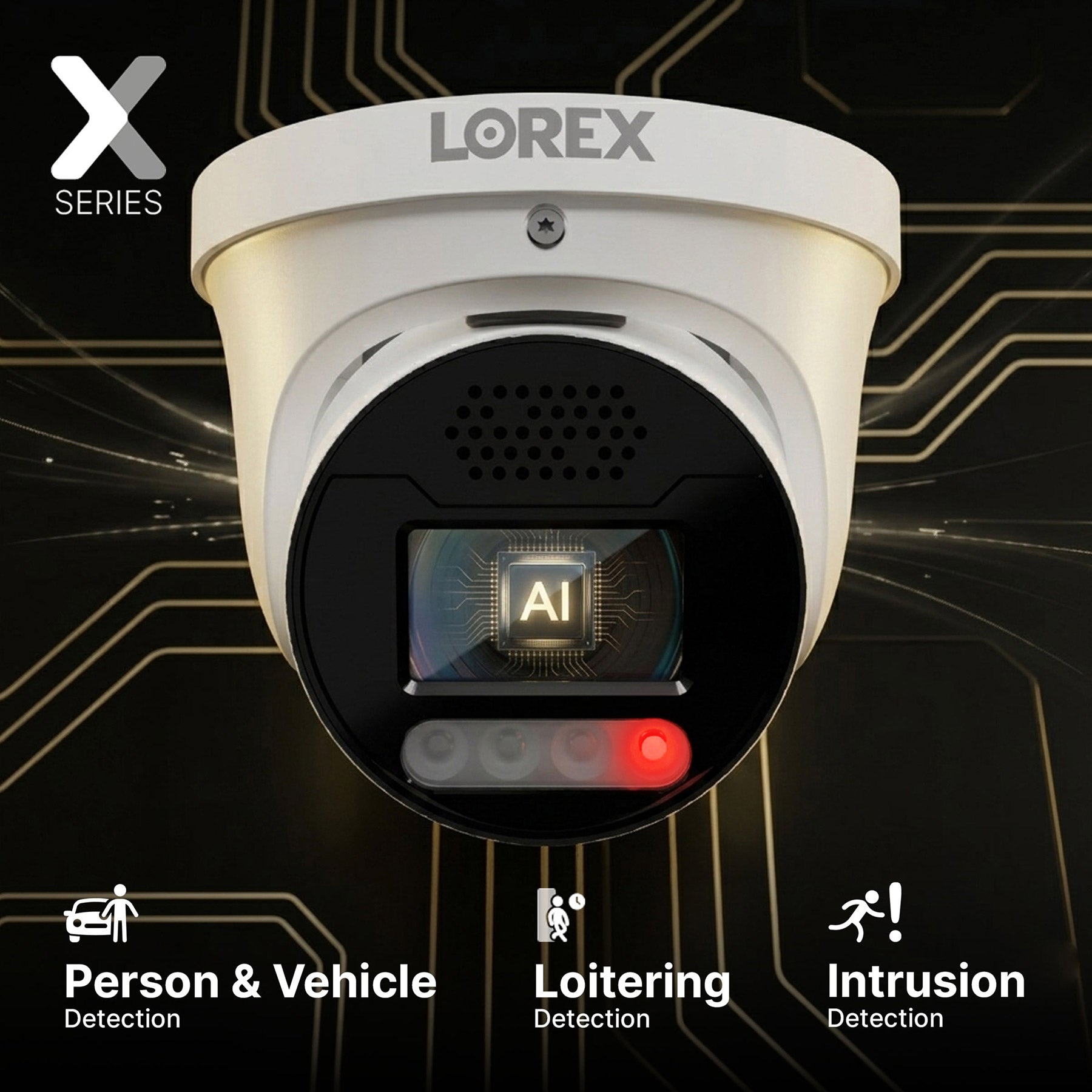

Detection Person, Vehicle, Intrusion, Loitering,
Wrong-Way, Unauthorized Parking
Perimeter Protection Line-Crossing, Dual-Line Crossing
Tracking & Monitoring Smart Motion

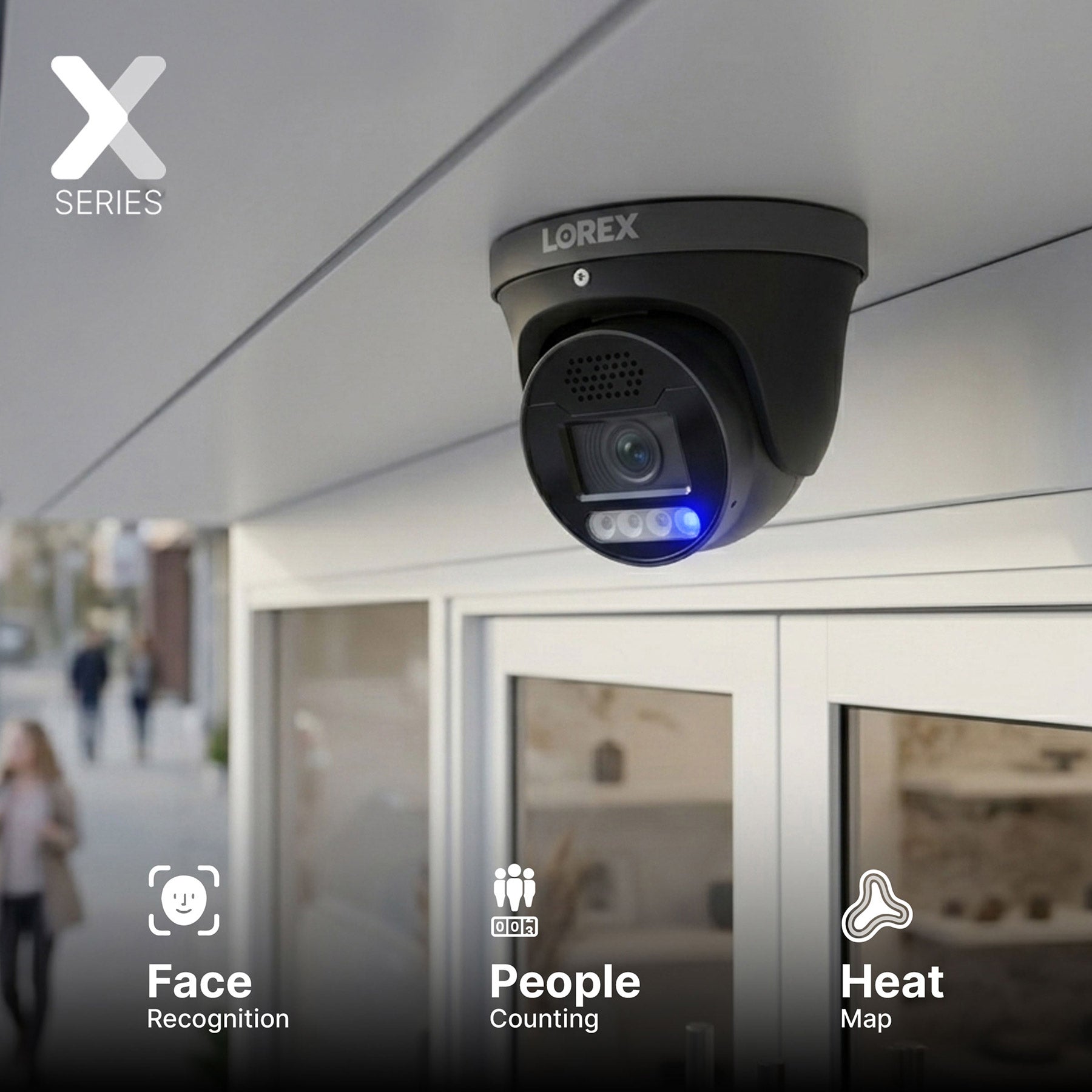

Crowd Analytics Heat Map, People Counting
Active Deterrence Red and Blue Light, White Light,
Siren, Pre-Recorded Messages1
Network
Interface RJ45 (10/100 Base-T)
Interoperability ONVIF, RTSP
Storage & Power
Local SD Storage MicroSD Slot (Up to 1 TB)*
Power Supply 12V DC / PoE (IEEE 802.3af)
Max Power Consumption 8 W (DC) / 10.5 W (PoE)
Physical
Housing Material Aluminum Alloy
Colors Black / White
Mounting Adjustment Range Pan: 335° / Tilt: 75° / Rotation: 360°
Camera Dimensions
(D × H)
Ø 4.33 × 3.74 in
(Ø 110 × 95 mm)
Camera Weight 1.17 lb (0.53 kg)
Environmental
IP Rating IP66
Operating Temperature -22°F to 140°F (-30°C to 60°C)
Operating Humidity ≤ 90% RH
Package Information
Black: CNE01P-1TB-AB1 6-95529-06632-5
White: CNE01P-1TW-AB1 6-95529-06637-0
Package Type Brown Box
Package Dimensions
(W × D × H)
6.89 × 6.50 × 7.28 in
(175 × 165 × 185 mm)
Package Weight 1.39 lb (0.63 kg)
Package Cube 0.1887 ft³ (0.00534 m³)
Package Contents Ο X5 4K PoE Turret Camera with
AI Color Night Vision
Ο Mounting Template
Ο 3 × Mounting Anchors & Screws
Ο Weather-Resistant RJ45 Cable
Gland
