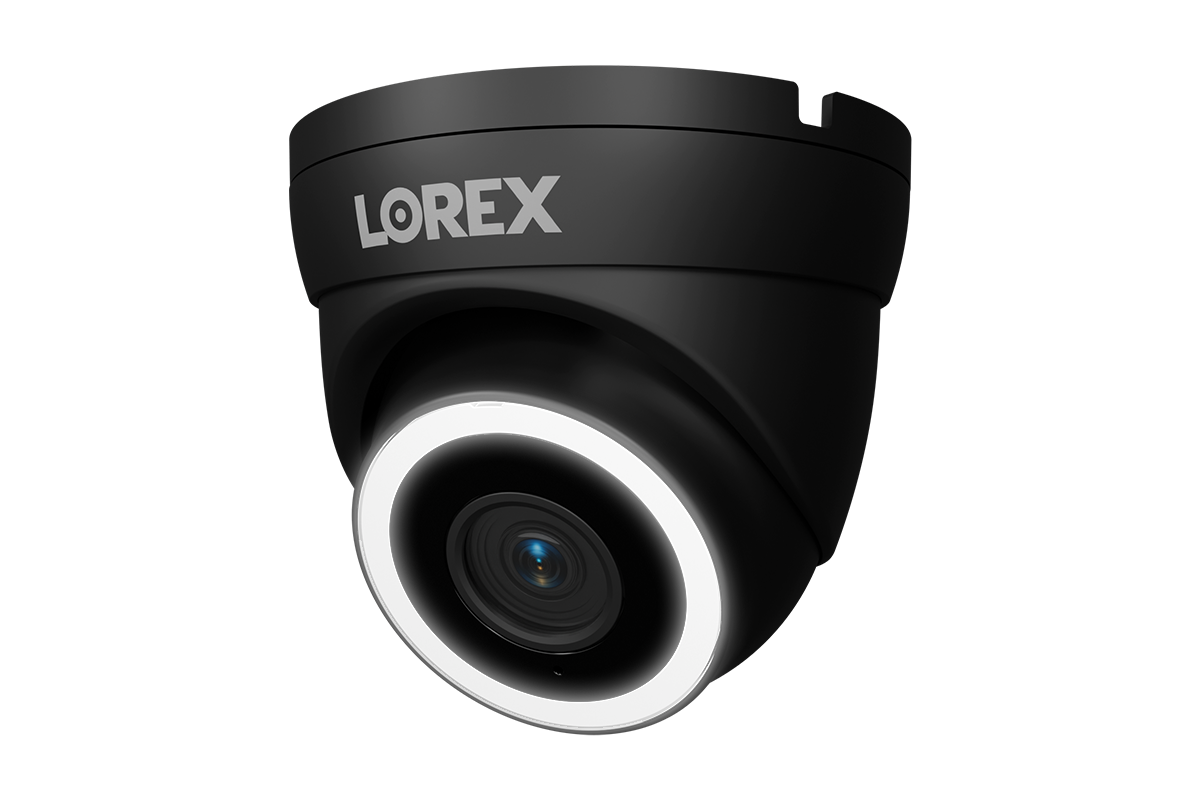

Lorex Connect V3 4K Wired PoE Turret Camera with Smart Security Lighting - White/Black (Cable not included)
Camera & Imaging
Video Transmission
Technology
IP
Image Sensor 1/2.7” CMOS
Lens Type Fixed 2.8 mm, F1.6
Effective Pixels 3840 (H) × 2160 (V)
Resolution / Frame Rate 4K (8 MP) @ 15 fps
Field of View (FoV) Diagonal: 126°
Minimum Focusing Distance 6.6 ft (2 m)
Wide Dynamic Range (WDR) Supported
Electronic Shutter Speed 1/5 – 1/20,000 s (DWDR ON / OFF)
White Balance Auto / Daylight / Cloudy / Tungsten /
Sunset / Night
Video & Audio
Video Compression H.265 / H.264
Audio Built-in Microphone and Speaker
2-Way Talk Supported (full-duplex)
Speaker Output 81 dB @ 2 ft (0.6 m)
Night Vision & Active Deterrence
Infrared (IR) Night Vision
Range
Up to 82 ft (25 m) in total darkness
Color Night Vision Supported
Smart Security Lighting Yes, White Color
Deterrence Light Yes
AI Detection & Smart Features
Smart Motion Detection Person and Vehicle Detection
Storage & Power
Local Storage MicroSD Card Slot (up to 256 GB)*
Power Supply PoE (Power over Ethernet, IEEE
802.3af) / 12 V DC
Maximum Power
Consumption
9.5 W
Network & Integration
Ethernet Interface RJ45 (10/100BASE-T)
ONVIF Supported
Network Protocols TCP/IP, HTTP, DHCP, DNS, DDNS,
RTP/RTSP, SMTP, NTP, UPnP, SNMP,
HTTPS, FTP
Physical & Environmental
Housing Material Metal
Operating Temperature -4°F / -20°C to 122°F / 50°C
Operating Humidity ≤ 90% RH
Environmental Rating IP67 (Indoor / Outdoor Use)
Camera Dimensions
(D × H)
3.94 × 3.15 in (100.04 × 80.01 mm)
Camera Weight 0.85 lbs (0.39 kg)
Product Specifications
V3 4K Turret
Lorex Connect V3 4K PoE Turret Camera with Smart AI Detection
Series Family: V
Series Line: V3
SKU: CN301A-1TW-AE1, CN301A-1TB-AE1
Lorex Corporation
10440 Little Patuxent Parkway, Ste, 300,
Columbia, MD 21044, United States
© 2026 Lorex Corporation
As our product is subject to continuous improvement, Lorex Technology & subsidiaries reserve the right to modify
product design, specifications & prices without notice and without incurring any obligation. E&OE. www.lorex.com 02042026-1
Disclaimers:
1. Compatible with select Lorex Network Video Recorders HD recorders. For a full list of compatible recorders visit: www.lorex.com/compatibility.
2. Color nighttime video typically switches to black & white IR night vision when there is not sufficient ambient light to ensure optimal low-light image quality.
3. Stated IR illumination range is based on ideal conditions in typical outdoor nighttime ambient lighting (up to 82.02 ft / 25 m in total darkness). Actual range and image clarity
depends on installation location, viewing area and light reflection/absorption.
4. Audio recording is disabled by default. Audio recording without consent is illegal in certain jurisdictions. Lorex Technology does not assume liability for any use of its product
that fails to conform with local laws.
5. Not intended for submersion in water. Installation in a sheltered location recommended.
6. Cable length is dependent on product configuration. See product packaging for details.
